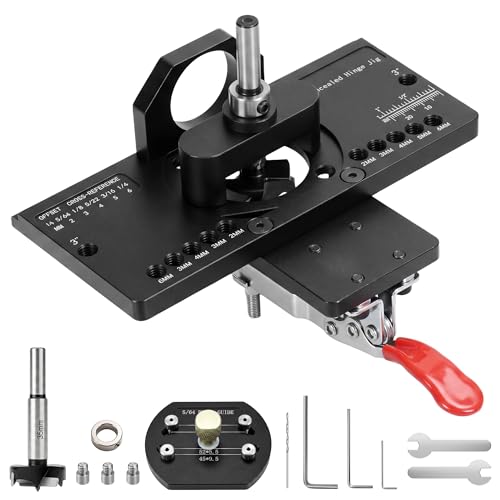

35mm Metal Concealed Hinge Jig Quick Clamp for Door Cabinet Woodworking - color: Deep Black

About this item

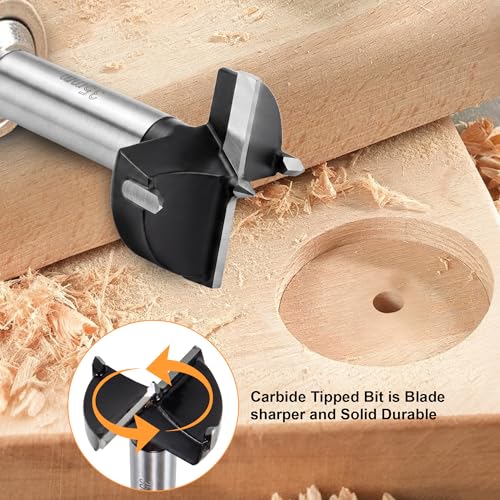

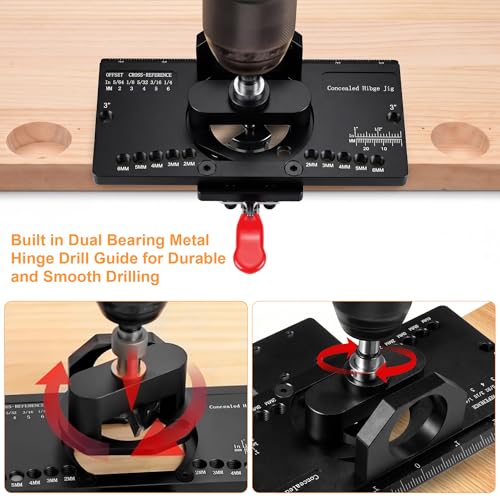

• All-Metal Precision: Upgrade your workflow with a heavy-duty cabinet hinge jig made from premium aluminum alloy. Unlike plastic door hinge templates, this concealed hinge jig features built-in dual bearings for ultra-smooth, repeatable 35mm hinge cup drilling. The carbide-tipped bit cuts clean and sharp, delivering drill-press accuracy for professional cabinet door installation

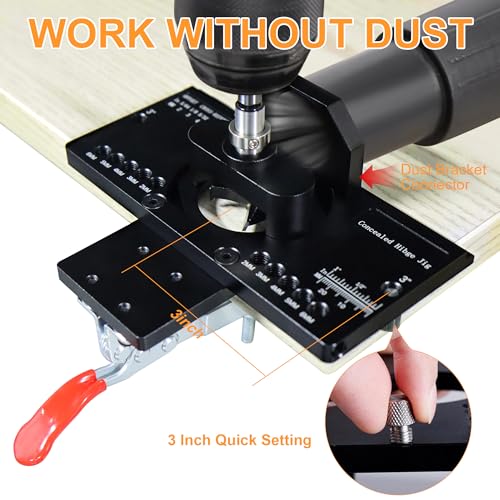

• True Dust-Free Drilling System: Designed for cleaner, more controlled drilling, this concealed door hinge jig features a built-in metal dust port compatible with most 1-3/8" vacuum hoses. Capture sawdust directly while drilling hinge cups, improving visibility, precision, and overall installation efficiency in any woodworking shop. The 1-3/8 inch dust adapter is perfect for most vaccum dust collector

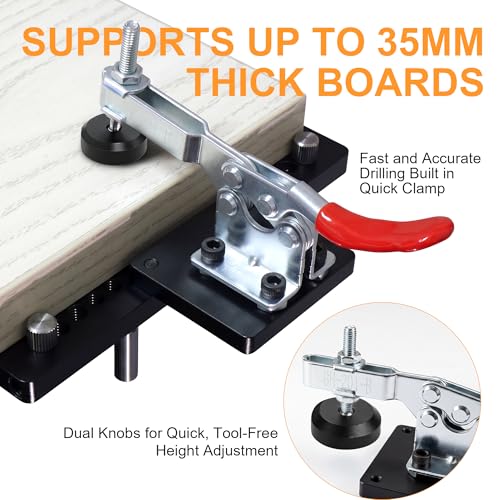

• Fast Depth Adjustment: This adjustable european hinge jig allows instant hinge cup depth settings from 0–0.6" (0–15mm). The quick-clamp system locks securely onto cabinet doors in seconds, allowing consistent, repeatable drilling without rulers or recalculating measurements. Ideal for 1/2" overlay hinges and most concealed hinge applications

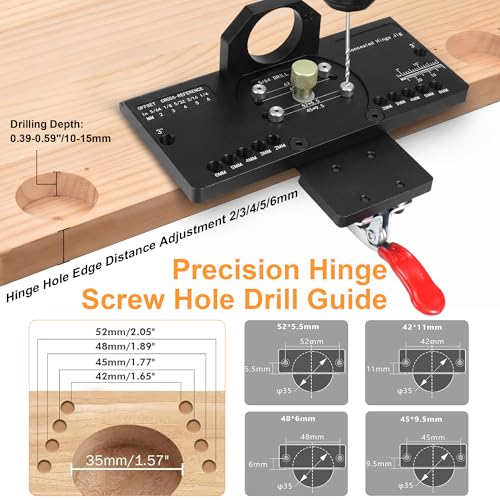

• Versatile Cabinet Hinge Jig：This versatile cabinet hardware jig & cabinet door hinge jig supports 2mm–6mm hinge offsets. Have no difficulty on any concealed hinges installation with 35mm hinge hole drilling jig. Our 5/64 inch drill guides includes four common screw hole spacings (42x11mm, 48x6mm, 52x5.5mm, 45x9.5mm). Ideal for most major concealed hinge brands and cabinet door types. Includes a 5/64" drill bit for precise pilot holes
• Built for Pros & Serious Diyers: Designed as both a precision cabinet hinge jig and practical hinge adjustment tool, this system ensures fast setup, stable clamping, and consistent results across multiple doors. Perfect for woodworking professionals, remodelers, and serious DIY projects
