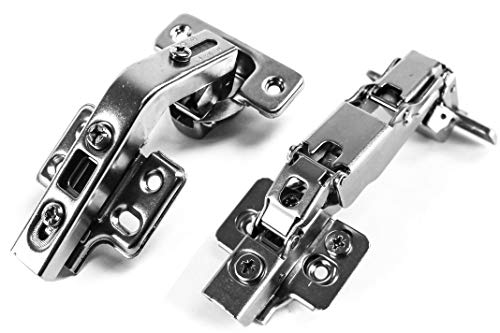

Berta (2+2) 135/165 Degree Hinges Combination, Full Overlay, 2-Cam 4-Way Adjustment, Concealed Frameless Lazy Susan/Bi Folding Cabinet Door Hinges Set with Screws (135 & 165 Degree Soft Close Hinges)
$26.81
Skip to product information
Berta (2+2) 135/165 Degree Hinges Combination, Full Overlay, 2-Cam 4-Way Adjustment, Concealed Frameless Lazy Susan/Bi Folding Cabinet Door Hinges Set with Screws (135 & 165 Degree Soft Close Hinges)
$26.81
About this item
- PACKAGE CONTENT: 2 Pair of Hinges (1 Pair of 135 Degree Hinges and 1 Pair of 165 Degree Soft Close Hinges) and Installation Screws. Only 165 Degree Hinges have Soft Closing function.

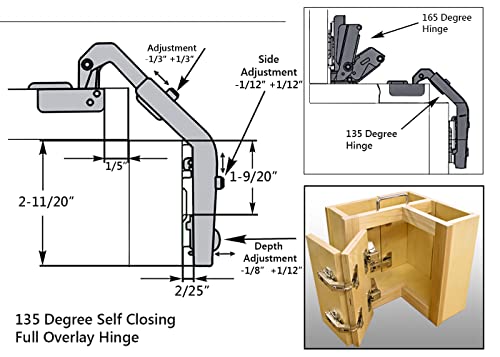

- USING: These hinges are used in kitchen furniture to connect 2 doors of Lazy Susan cabinets. This package contains a total of 4 hinges and installation screws used for mounting in a Lazy-Susan cabinet.

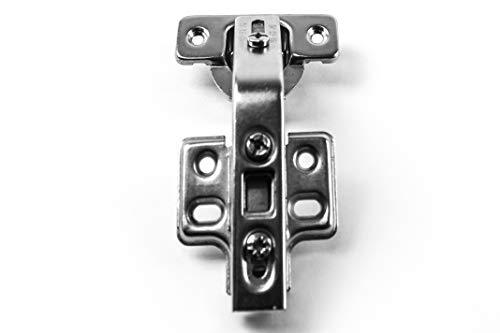

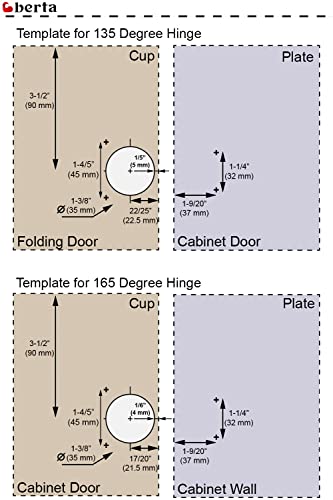

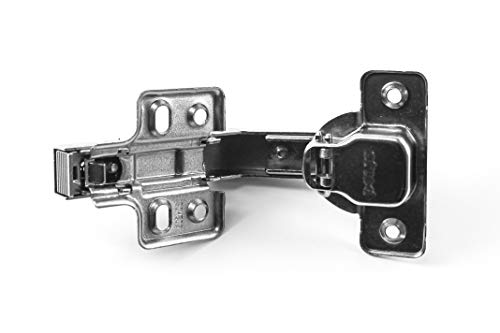

- 135 Degree Hinges Specification: Opening Degree: 135 Degree, Cup Diameter: 35 mm (1 2/5 Inch), Cup Depth: 12 mm (1/2 Inch), Suitable Door Thickness: 15-20 mm (3/5-5/6 mm). They are main specification of 135 Degree hinges, to see all specifications of hinges please look at the bottom “Product Description” section.

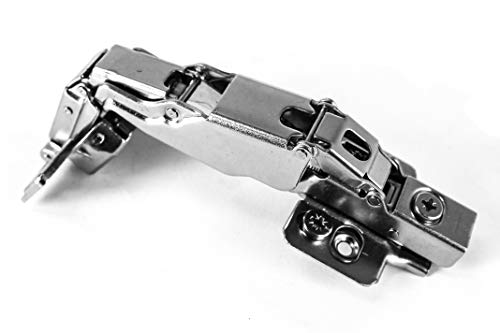

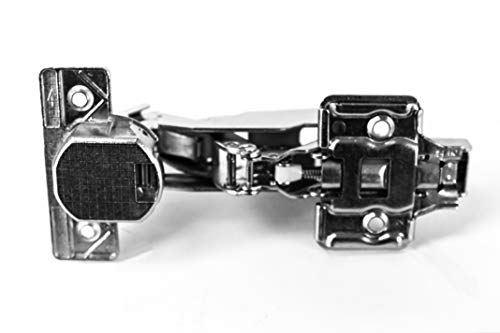

- 165 Degree Soft Close Hinges Specification: Opening Degree: 165 Degree, Cup Diameter: 35 mm (1 2/5 Inch), Cup Depth: 12 mm (1/2 Inch), Suitable Door Thickness: 16-24mm (3/5-1 mm). They are main specification of 165 Degree hinges, to see all specifications of hinges please look at the bottom “Product Description” section.
- Soft-Close Performance: Built-in hydraulic soft-close mechanism provides smooth, quiet self-closing action while reducing impact, noise and daily wear on cabinet doors.
Overview
- Material: Alloy Steel
- Brand: Berta
- Product Dimensions: 8"L x 5"W
- Mounting Type: Door Mount
- Hole Count: 2
- Unit Count: 1 Count
- Number of Packs: 2
- Color: Metal
- Number of Items: 4
- Manufacturer: Berta Furniture&Accessories
